接着上一篇ubuntu下利用Dlib实现目标跟踪（上）（http://www.linuxdiyf.com/linux/32211.html），本文继续介绍Dlib的目标跟踪功能。
用dlib来实现多多目标跟踪也是很容易的，就是多声明几个dlib.correlation_tracker()类就好了，将上一篇ubuntu下利用Dlib实现目标跟踪（上）中的代码加以修改，就可以达到多目标跟踪的效果了。
先贴代码，看效果：
import os
import glob
import cv2
import dlib
# Path to the video frames
video_folder = os.path.join("..", "examples", "video_frames2")
# Create the correlation tracker - the object needs to be initialized before it can be used
tracker1 = dlib.correlation_tracker()
tracker2 = dlib.correlation_tracker()
tracker3 = dlib.correlation_tracker()
selection = None
track_window = None
drag_start = None
def onmouse(event, x, y, flags, param):
global selection,track_window,drag_start
if event == cv2.EVENT_LBUTTONDOWN:
drag_start = (x, y)
track_window = None
if drag_start:
xmin = min(x, drag_start[0])
ymin = min(y, drag_start[1])
xmax = max(x, drag_start[0])
ymax = max(y, drag_start[1])
selection = (xmin, ymin, xmax, ymax)
if event == cv2.EVENT_LBUTTONUP:
drag_start = None
track_window = selection
selection = None
def main():
track_window1 = ()
track_window2 = ()
track_window3 = ()
cv2.namedWindow('image',1)
cv2.setMouseCallback('image',onmouse)
# We will track the frames as we load them off of disk
for k, f in enumerate(sorted(glob.glob(os.path.join(video_folder, "*.jpg")))):
print("Processing Frame {}".format(k))
img_raw = cv2.imread(f)
image = img_raw.copy()
# We need to initialize the tracker on the first frame
if k == 0:
# Start a track on the object you want. box the object using the mouse and press 'Enter' to start tracking
while True:
img_first = image.copy()
if track_window:
cv2.rectangle(img_first,(track_window[0],track_window[1]),(track_window[2],track_window[3]),(0,0,255),1)
elif selection:
cv2.rectangle(img_first,(selection[0],selection[1]),(selection[2],selection[3]),(0,0,255),1)
if track_window1:
cv2.rectangle(img_first,(track_window1[0],track_window1[1]),(track_window1[2],track_window1[3]),(0,255,255),1)
if track_window2:
cv2.rectangle(img_first,(track_window2[0],track_window2[1]),(track_window2[2],track_window2[3]),(0,255,100),1)
if track_window3:
cv2.rectangle(img_first,(track_window3[0],track_window3[1]),(track_window3[2],track_window3[3]),(200,0,200),1)
cv2.imshow('image',img_first)
if cv2.waitKey(10) == 10:
if not track_window1:
track_window1 = track_window
elif not track_window2:
track_window2 = track_window
elif not track_window3:
track_window3 = track_window
else:
break
tracker1.start_track(image, dlib.rectangle(track_window1[0], track_window1[1], track_window1[2], track_window1[3]))
tracker2.start_track(image, dlib.rectangle(track_window2[0], track_window2[1], track_window2[2], track_window2[3]))
tracker3.start_track(image, dlib.rectangle(track_window3[0], track_window3[1], track_window3[2], track_window3[3]))
else:
# Else we just attempt to track from the previous frame
tracker1.update(image)
tracker2.update(image)
tracker3.update(image)
# Get previous box and draw on showing image
box1_predict = tracker1.get_position()
box2_predict = tracker2.get_position()
box3_predict = tracker3.get_position()
cv2.rectangle(image,(int(box1_predict.left()),int(box1_predict.top())),(int(box1_predict.right()),int(box1_predict.bottom())),(0,255,255),1)
cv2.rectangle(image,(int(box2_predict.left()),int(box2_predict.top())),(int(box2_predict.right()),int(box2_predict.bottom())),(0,255,100),1)
cv2.rectangle(image,(int(box3_predict.left()),int(box3_predict.top())),(int(box3_predict.right()),int(box3_predict.bottom())),(200,0,200),1)
cv2.imshow('image',image)
cv2.waitKey(10)
cv2.destroyAllWindows()
if __name__ == '__main__':
main()
注：video_frames2文件夹中放的是我Windows下利用dlib19.2实现多目标追踪 中用的视频图片集。
用鼠标框要跟踪的物体，框完按回车键确认，同样的手法连框三个
再次按回车键开始跟踪

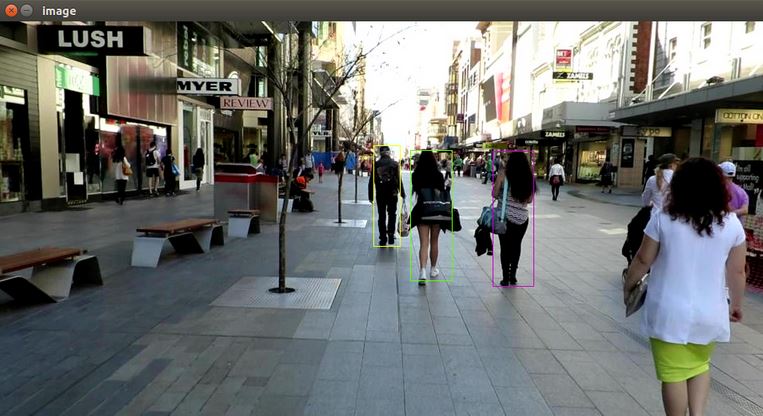

跟踪效果还是很不错的
但发现dlib这个目标跟踪的物体如果遭遇遮挡，它就不灵光了（这个技术难度是很大的）
本文介绍的多目标跟踪方法和Windows下利用dlib19.2实现多目标追踪 中介绍的GitHub链接https://github.com/eveningglow/multi-object-tracker在效果上是差不多的，但速度快了的可不是一星半点儿。Windows下利用dlib19.2实现多目标追踪也是用了Dlib和OpenCV，只是在Windows下用C++（不应该更快么）实现的。
