【Ubuntu Desktop】VMware中Unknown Display

发布时间:2017-03-24 11:02:06来源:blog.csdn.net/dream361作者:放心飞吧

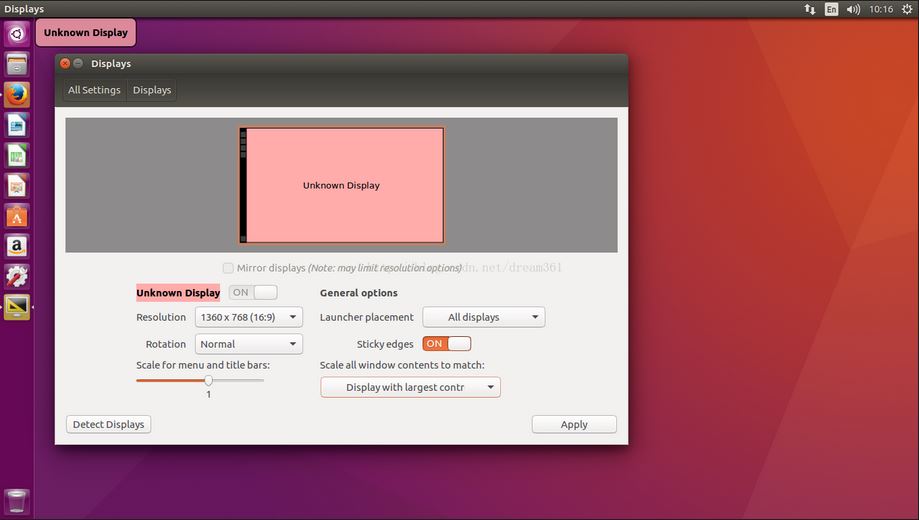

由于之前重复的安装卸载Unity桌面,今天遇到了在设置虚拟机分辨率的时候,遇到了Unknown Display问题。
【Ubuntu Desktop】VMware中Unknown Display

参考网上内容,使用 xrandr调节分辨率。
xrandr只能在虚拟机本地终端执行,不能使用ssh远程操作。

1.输入xrandr查看可设置的分辨率取值*为当前屏幕分辨率取值
dream361@ubuntu16:~$ xrandr
Screen 0: minimum 1 x 1, current 1360 x 768, maximum 16384 x 16384
Virtual1 connected primary 1360x768+0+0 (normal left inverted right x axis y axis) 0mm x 0mm
800x600       60.00 +  60.32
2560x1600     59.99
1920x1440     60.00
1856x1392     60.00
1792x1344     60.00
1920x1200     59.88
1600x1200     60.00
1680x1050     59.95
1400x1050     59.98
1280x1024     60.02
1440x900      59.89
1280x960      60.00
1360x768      60.02*
1280x800      59.81
1152x864      75.00
1280x768      59.87
1024x768      60.00
640x480       59.94
Virtual2 disconnected (normal left inverted right x axis y axis)
Virtual3 disconnected (normal left inverted right x axis y axis)
Virtual4 disconnected (normal left inverted right x axis y axis)
Virtual5 disconnected (normal left inverted right x axis y axis)
Virtual6 disconnected (normal left inverted right x axis y axis)
Virtual7 disconnected (normal left inverted right x axis y axis)
Virtual8 disconnected (normal left inverted right x axis y axis)

2.临时设置分辨率
dream361@ubuntu16:~$ xrandr -s 1280x768_59.81

3.永久设置分辨率,参数output的值,Virtual1 根据第一步输出信息得到
dream361@ubuntu16:~$ xrandr --output Virtual1 --mode 1360x768
负责任的讲一下,上面的永久设置在重启之后会失效!
