一、简介
Cobbler是红帽开发的批量部署系统的工具，对RHEL、CentOS支持完美
对其他发行版的Linux部分支持，也不是很完美
本文介绍的是基于CentOS 7上安装cobbler 2.6的文档

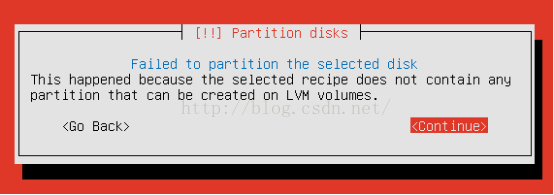

参照了网上的一些教程和官方文档，加上自己的实践，特别是分区部分，调试了数十次才算完美了。
二、安装CentOS 7调整配置及安装相关软件
1、调整配置
安装完成后关闭selinux或参照cobbler官方文档设置selinux，http://cobbler.github.io/manuals/2.6.0/4/2_-_SELinux.html
[root@cobbler-server ~]# sed -i '/SELINUX/s/enforcing/disabled/' /etc/selinux/config
重启服务器
关闭iptables以及取消开机启动，centos7 minimal没有安装ipables
关闭firewall或放行80 67 68 69 443端口
80 443是cobbler web管理界面端口
67 68 是DHCP端口
69是TFTP端口
[root@cobbler-server ~]# systemctl stop firewalld
[root@cobbler-server ~]# systemctl disable firewalld
2、安装epel 包
[root@cobbler-server ~]# yum install epel-release
[root@cobbler-server ~]# yum makecache
3、安装cobbler、cobbler-web以及相关依赖软件
[root@cobbler-server ~]# yum install cobbler cobbler-web xinetd pykickstart cman dhcp -y
4、设置开机启动
[root@cobbler-server ~]# systemctl enablehttpd
[root@cobbler-server ~]# systemctl enabledhcpd
[root@cobbler-server ~]# systemctl enablecobblerd
三、Cobbler、tftp、dhcp、rsync配置
1、TFTP配置
配置tftp（disable = no）为修改后的值
[root@cobbler-server ~]# vim /etc/xinetd.d/tftp
# default: off
# description: The tftp server serves files using the trivial file transfer \
# protocol. The tftp protocol is often used to boot diskless \
# workstations, download configuration files to network-aware printers, \
# and to start the installation process for some operating systems.
service tftp
{
socket_type = dgram
protocol = udp
wait = yes
user = root
server = /usr/sbin/in.tftpd
server_args = -s /var/lib/tftpboot
disable = no
per_source = 11
cps = 100 2
flags = IPv4
}
2、配置rsync
[root@cobbler-server ~]# systemctl enable rsyncd
CentOS7上安装cobbler对于rsync无需额外配置
3、配置/etc/cobbler/settings
[root@cobbler-server ~]# cat /etc/cobbler/settings |grep '^[^#]'
---
allow_duplicate_hostnames: 0
allow_duplicate_ips: 0
allow_duplicate_macs: 0
allow_dynamic_settings: 0
anamon_enabled: 0
authn_pam_service: "login"
auth_token_expiration: 3600
build_reporting_enabled: 0
build_reporting_sender: ""
build_reporting_email: [ 'root@localhost' ]
build_reporting_smtp_server: "localhost"
build_reporting_subject: ""
build_reporting_ignorelist: [ "" ]
cheetah_import_whitelist:
- "random"
- "re"
- "time"
createrepo_flags: "-c cache -s sha"
default_kickstart: /var/lib/cobbler/kickstarts/default.ks
default_name_servers: []
default_ownership:
- "admin"
default_password_crypted: "$1$mF86/UHC$WvcIcX2t6crBz2onWxyac."
default_template_type: "cheetah"
default_virt_bridge: xenbr0
default_virt_file_size: 5
default_virt_ram: 512
default_virt_type: xenpv
enable_gpxe: 0
enable_menu: 1
func_auto_setup: 0
func_master: overlord.example.org
http_port: 80
kernel_options:
ksdevice: bootif
lang: ' '
text: ~
kernel_options_s390x:
RUNKS: 1
ramdisk_size: 40000
root: /dev/ram0
ro: ~
ip: off
vnc: ~
ldap_server: "ldap.example.com"
ldap_base_dn: "DC=example,DC=com"
ldap_port: 389
ldap_tls: 1
ldap_anonymous_bind: 1
ldap_search_bind_dn: ''
ldap_search_passwd: ''
ldap_search_prefix: 'uid='
ldap_tls_cacertfile: ''
ldap_tls_keyfile: ''
ldap_tls_certfile: ''
mgmt_classes: []
mgmt_parameters:
from_cobbler: 1
puppet_auto_setup: 0
sign_puppet_certs_automatically: 0
puppetca_path: "/usr/bin/puppet"
remove_old_puppet_certs_automatically: 0
manage_dhcp: 1
#cobbler接管DHCP,默认为0,此处修改以后需要修改对应/etc/cobbler/dhcp.template模板
manage_dns: 0
bind_chroot_path: ""
bind_master: 127.0.0.1
manage_tftpd: 1
manage_rsync: 1 #接管rsync，无需额外配置rsync
manage_forward_zones: []
manage_reverse_zones: []
next_server: 192.168.11.252 #本机ip地址
power_management_default_type: 'ipmitool'
power_template_dir: "/etc/cobbler/power"
pxe_just_once: 0
pxe_template_dir: "/etc/cobbler/pxe"
consoles: "/var/consoles"
redhat_management_type: "off"
redhat_management_server: "xmlrpc.rhn.redhat.com"
redhat_management_key: ""
redhat_management_permissive: 0
register_new_installs: 0
reposync_flags: "-l -n -d"
restart_dns: 1
restart_dhcp: 1
run_install_triggers: 1
scm_track_enabled: 0
scm_track_mode: "Git"
server: 192.168.11.252 #本机ip地址
client_use_localhost: 0
client_use_https: 0
snippetsdir: /var/lib/cobbler/snippets
template_remote_kickstarts: 0
virt_auto_boot: 1
webdir: /var/www/cobbler
xmlrpc_port: 25151
yum_post_install_mirror: 1
yum_distro_priority: 1
yumdownloader_flags: "--resolve"
serializer_pretty_json: 0
replicate_rsync_options: "-avzH"
replicate_repo_rsync_options: "-avzH"
always_write_dhcp_entries: 0
proxy_url_ext: ""
proxy_url_int: ""
4、修改/etc/cobbler/modules.conf
[root@cobbler-server ~]# cat /etc/cobbler/modules.conf |grep '^[^#]'
[authentication]
module = authn_configfile
[authorization]
module = authz_allowall
[dns]
module = manage_bind
[dhcp]
module = manage_isc #如果是dnsmasq就应该为manage_dnsmasq
[tftpd]
module = manage_in_tftpd
5、修改/etc/cobbler/dhcp.template
[root@localhost cobbler]# cat /etc/cobbler/dhcp.template |grep '^[^#]'
ddns-update-style interim;
allow booting;
allow bootp;
ignore client-updates;
set vendorclass = option vendor-class-identifier;
option pxe-system-type code 93 = unsigned integer 16;
subnet 192.168.11.0 netmask 255.255.255.0 {
option routers 192.168.11.252;
option domain-name-servers 192.168.11.252;
option subnet-mask 255.255.255.0;
range dynamic-bootp 192.168.11.100 192.168.11.200;
default-lease-time 21600;
max-lease-time 43200;
next-server $next_server;
class "pxeclients" {
match if substring (option vendor-class-identifier, 0, 9) = "PXEClient";
if option pxe-system-type = 00:02 {
filename "ia64/elilo.efi";
} else if option pxe-system-type = 00:06 {
filename "grub/grub-x86.efi";
} else if option pxe-system-type = 00:07 {
filename "grub/grub-x86_64.efi";
} else {
filename "pxelinux.0";
}
}
}
## group could be subnet if your dhcp tags line up with your subnets
## or really any valid dhcpd.conf construct ... if you only use the
## default dhcp tag in cobbler, the group block can be deleted for a
## flat configuration
group {
#for mac in $dhcp_tags[$dhcp_tag].keys():
#set iface = $dhcp_tags[$dhcp_tag][$mac]
host $iface.name {
hardware ethernet $mac;
#if $iface.ip_address:
fixed-address $iface.ip_address;
#end if
#if $iface.hostname:
option host-name "$iface.hostname";
#end if
#if $iface.netmask:
option subnet-mask $iface.netmask;
#end if
#if $iface.gateway:
option routers $iface.gateway;
#end if
#if $iface.enable_gpxe:
if exists user-class and option user-class = "gPXE" {
filename "http://$cobbler_server/cblr/svc/op/gpxe/system/$iface.owner";
} else if exists user-class and option user-class = "iPXE" {
filename "http://$cobbler_server/cblr/svc/op/gpxe/system/$iface.owner";
} else {
filename "undionly.kpxe";
}
#else
filename "$iface.filename";
#end if
## Cobbler defaults to $next_server, but some users
## may like to use $iface.system.server for proxied setups
next-server $next_server;
## next-server $iface.next_server;
}
#end for
}
6、重启cobbler httpd服务
[root@cobbler-server ~]# systemctl restart cobblerd
[root@cobbler-server ~]# systemctl restart httpd
四、检查cobbler配置
[root@cobbler-server ~]# cobbler check
The following are potential configuration items that you may want to fix:
1 : debmirror package is not installed, it will be required to manage debian deployments and repositories
2 : The default password used by the sample templates for newly installed machines (default_password_crypted in /etc/cobbler/settings) is still set to 'cobbler' and should be changed, try: "openssl passwd -1 -salt 'random-phrase-here' 'your-password-here'" to generate new one
Restart cobblerd and then run 'cobbler sync' to apply changes.
以上两点都可以忽略
第二点是修改部署系统默认的root密码
若提示enabled rsyncd or use systemctl to start rsyncd.service
是叫你把rsync加到开机启动
[root@cobbler-server ~]# systemctl enable rsyncd
执行以上命令后就不会出现这个提示了。
五、导入镜像并查看导入情况
1、导入镜像
[root@cobbler-server ~]# mount /dev/cdrom /mnt/cdrom/
mount: /dev/sr0 is write-protected, mounting read-only
[root@cobbler-server ~]#cobbler import --path=/mnt/cdrom/ --name=ubuntu-12.04.5 --arch=x86_64
task started: 2016-10-07_221950_import
task started (id=Media import, time=Fri Oct 7 22:19:50 2016)
Found a candidate signature: breed=freebsd, version=10.1
Found a candidate signature: breed=freebsd, version=10.0
Found a candidate signature: breed=freebsd, version=8.3
Found a candidate signature: breed=freebsd, version=8.2
Found a candidate signature: breed=freebsd, version=8.4
Found a candidate signature: breed=freebsd, version=10.2
Found a candidate signature: breed=freebsd, version=9.0
Found a candidate signature: breed=freebsd, version=9.1
Found a candidate signature: breed=freebsd, version=9.2
Found a candidate signature: breed=freebsd, version=9.3
Found a candidate signature: breed=ubuntu, version=precise
running: /usr/bin/file /var/www/cobbler/ks_mirror/ubuntu-12.04.5-x86_64/dists/precise/Release
received on stdout: /var/www/cobbler/ks_mirror/ubuntu-12.04.5-x86_64/dists/precise/Release: ASCII text
received on stderr:
Found a matching signature: breed=ubuntu, version=precise
Adding distros from path /var/www/cobbler/ks_mirror/ubuntu-12.04.5-x86_64:
creating new distro: ubuntu-12.04.5-x86_64
trying symlink: /var/www/cobbler/ks_mirror/ubuntu-12.04.5-x86_64 -> /var/www/cobbler/links/ubuntu-12.04.5-x86_64
creating new profile: ubuntu-12.04.5-x86_64
associating repos
checking for apt repo(s)
adding apt repo for ubuntu-12.04.5-x86_64
Added repos for ubuntu-12.04.5-x86_64
*** TASK COMPLETE ***
有些镜像是不支持的，不支持就会导入错误
2、查看
查看导入的镜像和使用到的kickstart文件信息
[root@cobbler-server ~]# cobbler distro list
CentOS-7.2-x86_64
ESXi-6.0.0-x86_64
ubuntu-12.04.5-x86_64
[root@cobbler-server ~]# cobbler profile report
Name : ESXi-6.0.0-x86_64
TFTP Boot Files : {}
Comment :
DHCP Tag : default
Distribution : ESXi-6.0.0-x86_64
Enable gPXE? : 0
Enable PXE Menu? : 1
Fetchable Files : {}
Kernel Options : {}
Kernel Options (Post Install) : {}
Kickstart : /var/lib/cobbler/kickstarts/sample_esxi5.ks
Kickstart Metadata : {}
Management Classes : []
Management Parameters : <<inherit>>
Name Servers : []
Name Servers Search Path : []
Owners : ['admin']
Parent Profile :
Internal proxy :
Red Hat Management Key : <<inherit>>
Red Hat Management Server : <<inherit>>
Repos : []
Server Override : <<inherit>>
Template Files : {}
Virt Auto Boot : 1
Virt Bridge : xenbr0
Virt CPUs : 1
Virt Disk Driver Type : raw
Virt File Size(GB) : 5
Virt Path :
Virt RAM (MB) : 512
Virt Type : kvm
Name : CentOS-7.2-x86_64
TFTP Boot Files : {}
Comment :
DHCP Tag : default
Distribution : CentOS-7.2-x86_64
Enable gPXE? : 0
Enable PXE Menu? : 1
Fetchable Files : {}
Kernel Options : {}
Kernel Options (Post Install) : {}
Kickstart : /var/lib/cobbler/kickstarts/sample_end.ks
Kickstart Metadata : {}
Management Classes : []
Management Parameters : <<inherit>>
Name Servers : []
Name Servers Search Path : []
Owners : ['admin']
Parent Profile :
Internal proxy :
Red Hat Management Key : <<inherit>>
Red Hat Management Server : <<inherit>>
Repos : []
Server Override : <<inherit>>
Template Files : {}
Virt Auto Boot : 1
Virt Bridge : xenbr0
Virt CPUs : 1
Virt Disk Driver Type : raw
Virt File Size(GB) : 5
Virt Path :
Virt RAM (MB) : 512
Virt Type : kvm
Name : ubuntu-12.04.5-x86_64
TFTP Boot Files : {}
Comment :
DHCP Tag : default
Distribution : ubuntu-12.04.5-x86_64
Enable gPXE? : 0
Enable PXE Menu? : 1
Fetchable Files : {}
Kernel Options : {}
Kernel Options (Post Install) : {}
Kickstart : /var/lib/cobbler/kickstarts/sample.seed
Kickstart Metadata : {}
Management Classes : []
Management Parameters : <<inherit>>
Name Servers : []
Name Servers Search Path : []
Owners : ['admin']
Parent Profile :
Internal proxy :
Red Hat Management Key : <<inherit>>
Red Hat Management Server : <<inherit>>
Repos : []
Server Override : <<inherit>>
Template Files : {}
Virt Auto Boot : 1
Virt Bridge : xenbr0
Virt CPUs : 1
Virt Disk Driver Type : raw
Virt File Size(GB) : 5
Virt Path :
Virt RAM (MB) : 512
Virt Type : kvm
六、编辑seed文件
1、普通分区配置
[root@cobbler-server ~]# grep "^[^#]" /var/lib/cobbler/kickstarts/sample.seed
d-i debian-installer/locale string en_US
d-i console-setup/ask_detect boolean false
d-i keyboard-configuration/layoutcode string us
d-i keyboard-configuration/variantcode string
d-i netcfg/choose_interface select auto
d-i netcfg/get_hostname string $myhostname
d-i time/zone string US/Eastern
d-i clock-setup/utc boolean true
d-i clock-setup/ntp boolean true
d-i clock-setup/ntp-server string ntp.ubuntu.com
d-i mirror/country string manual
d-i mirror/http/hostname string $http_server
d-i mirror/http/directory string $install_source_directory
d-i mirror/http/proxy string
d-i live-installer/net-image string http://$http_server/cobbler/links/$distro_name/install/filesystem.squashfs
d-i partman-auto/disk string /dev/sda
d-i partman-auto/method string regular
d-i partman-auto/choose_recipe select fsm
d-i partman-lvm/device_remove_lvm boolean true
d-i partman-md/device_remove_md boolean true
d-i partman-auto/expert_recipe string \
fsm :: \
1024 100% 1024 linux-swap method{ swap } \
format{ } \
. \
2048 2048 2048 ext4 method{ format } \
mountpoint{ /home } \
format{ } use_filesystem{ } filesystem{ ext4 } \
. \
10240 10240 10240 ext4 method{ format } \
mountpoint{ / } \
format{ } use_filesystem{ } filesystem{ ext4 } \
options/relatime{ relatime } \
. \
768 1024 1024 ext4 method{ format } \
mountpoint{ /tmp } \
format{ } use_filesystem{ } filesystem{ ext4 } \
options/relatime{ relatime } \
. \
1 2048 1000000000 ext4 method{ format } \
mountpoint{ /www } \
format{ } use_filesystem{ } filesystem{ ext4 } \
options/relatime{ relatime } \
.
d-i partman-lvm/confirm_nooverwrite boolean true
d-i partman-lvm/confirm boolean true
d-i partman-partitioning/confirm_write_new_label boolean true
d-i partman/confirm_nooverwrite boolean true
d-i partman/confirm boolean true
d-i partman/choose_partition \
select Finish partitioning and write changes to disk
d-i passwd/root-login boolean true
d-i passwd/root-password-crypted password $default_password_crypted
d-i passwd/make-user boolean false
$SNIPPET('preseed_apt_repo_config')
d-i pkgsel/include string ntp ssh wget vim
d-i debian-installer/add-kernel-opts string $kernel_options_post
d-i finish-install/reboot_in_progress note
d-i preseed/early_command string wget -O- \
http://$http_server/cblr/svc/op/script/$what/$name/?script=preseed_early_default | \
/bin/sh -s
d-i preseed/late_command string wget -O- \
http://$http_server/cblr/svc/op/script/$what/$name/?script=preseed_late_default | \
chroot /target /bin/sh -s
2、lvm分区配置
部分是最重要的，定制分区的配置，以上是普通分区方式
如果是lvm分区方式，用以下配置
d-i partman-auto/disk string /dev/sda#指定磁盘
d-i partman-auto/method string lvm#分区格式lvm还是普通分区还是raid
d-i partman-auto/choose_recipe select fsm
d-i partman-lvm/device_remove_lvm boolean true
d-i partman-md/device_remove_md boolean true
d-i partman-auto-lvm/no_boot boolean true
d-i partman-auto-lvm/new_vg_name string vg0
d-i partman-auto/expert_recipe string \
fsm :: \
1024 100% 1024 linux-swap method{ swap } \
format{ } $lvmok{ } lv_name{ swap } \
. \
2048 2048 2048 ext4 method{ lvm } \
$lvmok{ } mountpoint{ /home } lv_name{ home } \
format{ } use_filesystem{ } filesystem{ ext4 } \
. \
10240 10240 10240 ext4 method{ lvm } \
$lvmok{ } mountpoint{ / } lv_name{ root } \
format{ } use_filesystem{ } filesystem{ ext4 } \
options/relatime{ relatime } \
. \
768 1024 1024 ext4 method{ lvm } \
$lvmok{ } mountpoint{ /tmp } lv_name{ tmp } \
format{ } use_filesystem{ } filesystem{ ext4 } \
options/relatime{ relatime } \
. \
1 2048 1000000000 ext4 method{ lvm } \
$lvmok{ } mountpoint{ /www } lv_name{ www } \
format{ } use_filesystem{ } filesystem{ ext4 } \
options/relatime{ relatime } \
.
d-i partman-lvm/confirm_nooverwrite boolean true
d-i partman-lvm/confirm boolean true
d-i partman-partitioning/confirm_write_new_label boolean true
d-i partman/confirm_nooverwrite boolean true
d-i partman/confirm boolean true
d-i partman/choose_partition \
select Finish partitioning and write changes to disk #保存分区
注：
$lvmok{ }必须存在，不然安装会报错无法继续
不存在这个选项cobbler又会报错
{'code': u'VFFSL(SL,"lvmok",True)',
'exc_val': NotFound(u"cannot find 'lvmok'",),
'lineCol': (60, 11),
'rawCode': u'$lvmok',
'time': 'Sun Oct 9 23:43:14 2016'}]
不知道是不是cobbler的bug。
七、注意事项
1、1 2048 1000000000 ext4 method{ lvm } \这三个数字分别代表最少1M，权重，最多1000000000M
如果把剩余的都分配就用三个-1，即-1 -1 -1 ext4 method{ lvm } \
2、d-i partman-auto/choose_recipe select fsm：fsm随意命名，但必须和d-i partman-auto/expert_recipe string fsm :: 这个fsm对应
3、seed文件中不能有中文哪怕是注释，不然会报错
4、每次修改/etc/cobbler/setting配置后需要执行cobbler sync进行同步
5、对于esxi的支持，默认不支持esxi6，但是可以用esxi5的kickstart文件，部分不兼容，但仍能全自动安装。

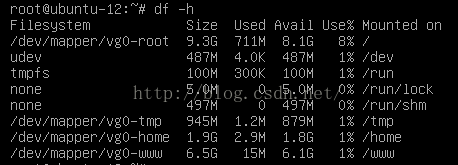

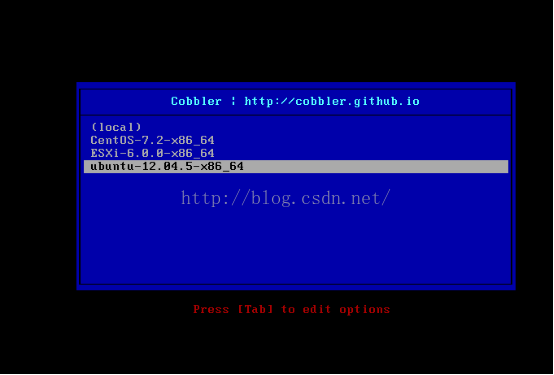

八、截图
