FFmpeg解码本地视频播放（配合SDL2）_Linux系统教程

一、FFmpeg编译

1、下载源码：https://github.com/FFmpeg/FFmpeg

2、编译环境 ubuntu14.04 32位

3、编译脚本 arm.sh

#!/bin/bash

export TMPDIR=$HOME/ffmpeg_temp

NDK=$HOME/tools/android-ndk-r10e

SYSROOT=$NDK/platforms/android-16/arch-arm/

TOOLCHAIN=$NDK/toolchains/arm-linux-androideabi-4.9/prebuilt/linux-x86

CPU=arm

PREFIX=$HOME/ffmpeg-so/arm/

ADDI_CFLAGS="-marm"

function build_one

{

./configure \

--prefix=$PREFIX \

--enable-shared \

--disable-static \

--disable-doc \

--disable-ffmpeg \

--disable-ffplay \

--disable-ffprobe \

--disable-ffserver \

--disable-doc \

--disable-symver \

--enable-small \

--cross-prefix=$TOOLCHAIN/bin/arm-linux-androideabi- \

--target-os=linux \

--arch=arm \

--enable-cross-compile \

--sysroot=$SYSROOT \

--extra-cflags="-Os -fpic $ADDI_CFLAGS" \

--extra-ldflags="$ADDI_LDFLAGS" \

$ADDITIONAL_CONFIGURE_FLAG

make clean

make

make install

}

build_one

x86版本只需要修改

export TMPDIR=$HOME/ffmpeg_temp

NDK=$HOME/tools/android-ndk-r10e

SYSROOT=$NDK/platforms/android-16/arch-x86/

TOOLCHAIN=$NDK/toolchains/x86-4.9/prebuilt/linux-x86

CPU=x86

PREFIX=$HOME/ffmpeg-so/x86/

3、将上边的编译脚本放到ffmpeg根目录执行，生成的so在上边PREFIX目录下。

二、SDL

1、下载最新源码2.0.4，android工程是android-project，导入到eclipse中。

2、sdl的jni中最终会调用main方法，为了方便，直接在sdl的android demo中修改，我的项目目录

include放ffmpeg的头文件

3、创建main.c文件

#include <stdlib.h>

#include <stdio.h>

#include <time.h>

#include <jni.h>

#include "libavcodec/avcodec.h"

#include "libavformat/avformat.h"

#include "libswscale/swscale.h"

#include "SDL.h"

#include <android/log.h>

#define LOG_TAG "SDL"

#define SDL_AUDIO_BUFFER_SIZE 1024

#define MAX_AUDIO_FRAME_SIZE 192000

#define MAX_AUDIOQ_SIZE (5 * 16 * 1024)

#define MAX_VIDEOQ_SIZE (5 * 256 * 1024)

#define FF_ALLOC_EVENT (SDL_USEREVENT)

#define FF_REFRESH_EVENT (SDL_USEREVENT + 1)

#define FF_QUIT_EVENT (SDL_USEREVENT + 2)

#define VIDEO_PICTURE_QUEUE_SIZE 1

#define LOGE(...) __android_log_print(ANDROID_LOG_ERROR,LOG_TAG,__VA_ARGS__)

typedef struct Sprite {

SDL_Texture* texture;

Uint16 w;

Uint16 h;

} Sprite;

typedef struct VideoDecoder {

AVFormatContext *pFormatCtx;

AVCodec *codec;

AVCodecContext *codec_ctx;

struct SwsContext *convert_ctx;

AVFrame *pFrame;

AVFrame *pFrameYUV;

AVPacket *packet;

SDL_Window *screen;

SDL_Renderer *renderer;

SDL_Texture *bmp;

SDL_Rect rect;

SDL_Event event;

} VideoDecoder;

typedef struct AudioDecoder {

AVCodec *codec;

AVCodecContext *codec_ctx;

AVPacket *aPacket;

AVFrame *aFrame;

AVPacketList *first_pkt, *last_pkt;

int nb_packets;

int size;

SDL_mutex *mutex;

SDL_cond *cond;

SDL_AudioSpec desired, obtained; //SDL_OpenAudio需要传递的参数，1期望的参数2实际音频设备的参数，一般传空就好

} AudioDecoder;

int quit = 0;

static void av_log_callback(void *ptr, int level, const char *fmt, __va_list vl) {

static char line[1024] = { 0 };

vsnprintf(line, sizeof(line), fmt, vl);

// LOGE("av_log_callback : %s", line);

}

JNIEXPORT jint JNI_OnLoad(JavaVM *vm, void *reserved) {

av_register_all();

av_log_set_callback(av_log_callback);

return JNI_VERSION_1_4;

}

/* Adapted from SDL's testspriteminimal.c */

Sprite LoadSprite(const char* file, SDL_Renderer* renderer) {

Sprite result;

result.texture = NULL;

result.w = 0;

result.h = 0;

SDL_Surface* temp;

/* Load the sprite image */

temp = SDL_LoadBMP(file);

if (temp == NULL) {

fprintf(stderr, "Couldn't load %s: %s\n", file, SDL_GetError());

return result;

}

result.w = temp->w;

result.h = temp->h;

/* Create texture from the image */

result.texture = SDL_CreateTextureFromSurface(renderer, temp);

if (!result.texture) {

fprintf(stderr, "Couldn't create texture: %s\n", SDL_GetError());

SDL_FreeSurface(temp);

return result;

}

SDL_FreeSurface(temp);

return result;

}

void draw(SDL_Window* window, SDL_Renderer* renderer, const Sprite sprite) {

int w, h;

SDL_GetWindowSize(window, &w, &h);

SDL_Rect destRect = { w / 2 - sprite.w / 2, h / 2 - sprite.h / 2, sprite.w,

sprite.h };

/* Blit the sprite onto the screen */

SDL_RenderCopy(renderer, sprite.texture, NULL, &destRect);

}

void decodeVideo() {

}

int decodeAudio(AudioDecoder *audioCtx, AVPacket *pkt) {

LOGE("decodeAudio()=========start%d",audioCtx->aPacket->size);

AVPacketList *pkt1;

if (av_dup_packet(pkt) < 0) {

return -1;

}

LOGE("decodeAudio()=========start1");

pkt1 = (AVPacketList *) av_malloc(sizeof(AVPacketList));

if (!pkt1)

return -1;

pkt1->pkt = *pkt;

pkt1->next = NULL;

SDL_LockMutex(audioCtx->mutex);

LOGE("decodeAudio()=========start2");

if (!audioCtx->last_pkt)

audioCtx->first_pkt = pkt1;

else

audioCtx->last_pkt->next = pkt1;

audioCtx->last_pkt = pkt1;

audioCtx->nb_packets++;

audioCtx->size += pkt1->pkt.size;

SDL_CondSignal(audioCtx->cond);

SDL_UnlockMutex(audioCtx->mutex);

LOGE("decodeAudio()=========end");

return 0;

}

int audio_decode_frame(AudioDecoder *audioCtx, uint8_t *audio_buf, int buf_size) {

LOGE("start audio_decode_frame==========");

AVPacket *pkt = audioCtx->aPacket;

if(pkt == NULL)

LOGE("start audio_decode_frame==========pkt == NULL");

uint8_t *audio_pkt_data = NULL;

int audio_pkt_size = 0;

int len1, data_size;

int framFinish = 0;

LOGE("start audio_decode_frame==========1 packet size:%d",pkt->size);

audioCtx->aFrame = av_frame_alloc();

for (;;) {

while (audio_pkt_size > 0) {

data_size = buf_size;

LOGE("start audio_decode_frame==========2");

len1 = avcodec_decode_audio4(audioCtx->codec_ctx, audioCtx->aFrame,

&framFinish, audioCtx->aPacket);

LOGE("decode audio ...");

if (len1 < 0) { /* if error, skip frame */

audio_pkt_size = 0;

break;

}

audio_pkt_data += len1;

audio_pkt_size -= len1;

if (data_size <= 0) { /* No data yet, get more frames */

continue;

} /* We have data, return it and come back for more later */

return data_size;

}

if (pkt->data)

av_free_packet(pkt);

if (quit) {

return -1;

}

if (packet_queue_get(&audioCtx, 1) < 0) {

return -1;

}

LOGE("audio_decode_frame ======aaaaaa");

audio_pkt_data = pkt->data;

audio_pkt_size = pkt->size;

}

return 0;

}

int packet_queue_get(AudioDecoder *q, int block) {

AVPacket *pkt = q->aPacket;

AVPacketList *pkt1;

int ret;

SDL_LockMutex(q->mutex);

for (;;) {

if (quit) {

ret = -1;

break;

}

pkt1 = q->first_pkt;

if (pkt1) {

q->first_pkt = pkt1->next;

if (!q->first_pkt)

q->last_pkt = NULL;

q->nb_packets--;

q->size -= pkt1->pkt.size;

*pkt = pkt1->pkt;

av_free(pkt1);

ret = 1;

break;

} else if (!block) {

ret = 0;

break;

} else {

SDL_CondWait(q->cond, q->mutex);

}

SDL_UnlockMutex(q->mutex);

return ret;

}

void audio_callback(void *userdata, Uint8 *stream, int len) {

AudioDecoder *audioCtx = (AudioDecoder *) userdata;

int len1, audio_size;

uint8_t audio_buf[(MAX_AUDIO_FRAME_SIZE * 3) / 2];

unsigned int audio_buf_size = 0;

unsigned int audio_buf_index = 0;

while (len > 0) {

if (audio_buf_index >= audio_buf_size) { /* We have already sent all our data; get more */

LOGE("audio_decode_frame audioCtx->pkt:");

audio_size = audio_decode_frame(audioCtx, audio_buf,

sizeof(audio_buf));

if (audio_size < 0) { /* If error, output silence */

audio_buf_size = 1024; // arbitrary?

memset(audio_buf, 0, audio_buf_size);

} else {

audio_buf_size = audio_size;

}

audio_buf_index = 0;

}

len1 = audio_buf_size - audio_buf_index;

if (len1 > len)

len1 = len;

memcpy(stream, (uint8_t *) audio_buf + audio_buf_index, len1);

len -= len1;

stream += len1;

audio_buf_index += len1;

}

int main(int argc, char *argv[]) {

VideoDecoder *videoCtx = (VideoDecoder *) av_mallocz(sizeof(VideoDecoder));

AudioDecoder *audioCtx = (AudioDecoder *) av_mallocz(sizeof(AudioDecoder));

audioCtx->mutex = SDL_CreateMutex();

audioCtx->cond = SDL_CreateCond();

LOGE("SDL init");

//init sdl2.0

if (SDL_Init(SDL_INIT_VIDEO | SDL_INIT_AUDIO | SDL_INIT_TIMER)) {

LOGE("Could not initialize SDL - %s\n", SDL_GetError());

exit(-1);

}

LOGE("SDL init success");

// Open video file

if (avformat_open_input(&videoCtx->pFormatCtx, argv[1], NULL, NULL) != 0)

return -1;

LOGE("open video file success.");

//获取视频流信息

if (avformat_find_stream_info(videoCtx->pFormatCtx, NULL) < 0)

return -1;

LOGE("stream info success.");

// Dump information about file onto standard error

av_dump_format(videoCtx->pFormatCtx, 0, argv[1], 0);

int videoIndex = -1, audioIndex = -1, i = 0;

//获取视频数据的下标值

for (i = 0; i < videoCtx->pFormatCtx->nb_streams; i++) {

if (videoCtx->pFormatCtx->streams[i]->codec->codec_type

== AVMEDIA_TYPE_VIDEO) {

videoIndex = i;

}

if (videoCtx->pFormatCtx->streams[i]->codec->codec_type

== AVMEDIA_TYPE_AUDIO) {

audioIndex = i;

}

if (videoIndex == -1 || audioIndex == -1)

return -1;

LOGE("拿到解码环境videoIndex:%d,audioIndex:%d",videoIndex,audioIndex);

//拿到音频解码环境

audioCtx->codec_ctx = videoCtx->pFormatCtx->streams[audioIndex]->codec;

audioCtx->desired.freq = audioCtx->codec_ctx->sample_rate;

audioCtx->desired.format = AUDIO_S16SYS;

audioCtx->desired.channels = audioCtx->codec_ctx->channels;

audioCtx->desired.silence = 0;

audioCtx->desired.samples = SDL_AUDIO_BUFFER_SIZE;

audioCtx->desired.callback = audio_callback;

audioCtx->desired.userdata = audioCtx;

if (SDL_OpenAudio(&audioCtx->desired, &audioCtx->obtained) < 0) {

LOGE("SDL_OpenAudio: %s/n", SDL_GetError());

return -1;

}

//寻找合适的音频解码器

audioCtx->codec = avcodec_find_decoder(audioCtx->codec_ctx->codec_id);

if (audioCtx->codec == NULL) {

LOGE("Unsupported audio codec! \n");

return -1;

}

//打开音频解码器

if (avcodec_open2(audioCtx->codec_ctx, audioCtx->codec, NULL) < 0) {

LOGE("Couldn't open audio codec.\n");

return -1;

}

//解码音频先注掉，有问题待修复

// SDL_PauseAudio(0);

//拿到视频解码环境

videoCtx->codec_ctx = videoCtx->pFormatCtx->streams[videoIndex]->codec;

//寻找合适的视频解码器

videoCtx->codec = avcodec_find_decoder(videoCtx->codec_ctx->codec_id);

if (videoCtx->codec == NULL) {

LOGE("Unsupported video codec! \n");

return -1;

}

//打开视频解码器

if (avcodec_open2(videoCtx->codec_ctx, videoCtx->codec, NULL) < 0) {

LOGE("Couldn't open video codec.\n");

return -1;

}

//AVFrame 获取帧指针

videoCtx->pFrame = av_frame_alloc();

videoCtx->pFrameYUV = av_frame_alloc();

if (videoCtx->pFrameYUV == NULL)

return -1;

LOGE("create screen");

videoCtx->screen = SDL_CreateWindow("my window",

SDL_WINDOWPOS_UNDEFINED,

SDL_WINDOWPOS_UNDEFINED, videoCtx->codec_ctx->width,

videoCtx->codec_ctx->height,

SDL_WINDOW_FULLSCREEN | SDL_WINDOW_OPENGL);

videoCtx->renderer = SDL_CreateRenderer(videoCtx->screen, -1, 0);

LOGE("create screen success");

if (!videoCtx->screen) {

LOGE("SDL: could not set video mode - exiting\n");

exit(1);

}

videoCtx->bmp = SDL_CreateTexture(videoCtx->renderer, SDL_PIXELFORMAT_YV12,

SDL_TEXTUREACCESS_STREAMING, videoCtx->codec_ctx->width,

videoCtx->codec_ctx->height);

videoCtx->convert_ctx = sws_getContext(videoCtx->codec_ctx->width,

videoCtx->codec_ctx->height, videoCtx->codec_ctx->pix_fmt,

videoCtx->codec_ctx->width, videoCtx->codec_ctx->height,

AV_PIX_FMT_YUV420P,

SWS_BILINEAR,

NULL,

NULL);

LOGE("计算YUV420P所需的内存大小");

//计算YUV420P所需的内存大小,并分配内存

int numBytes = avpicture_get_size(AV_PIX_FMT_YUV420P,

videoCtx->codec_ctx->width, videoCtx->codec_ctx->height);

uint8_t* buffer = (uint8_t *) av_malloc(numBytes * sizeof(uint8_t));

avpicture_fill((AVPicture *) videoCtx->pFrameYUV, buffer,

AV_PIX_FMT_YUV420P, videoCtx->codec_ctx->width,

videoCtx->codec_ctx->height);

LOGE("Read frames and save first five frames to disk");

// Read frames and save first five frames to disk

i = 0;

videoCtx->rect.x = 0;

videoCtx->rect.y = 0;

videoCtx->rect.w = videoCtx->codec_ctx->width;

videoCtx->rect.h = videoCtx->codec_ctx->height;

int frameFinished = 0;

LOGE("开始解码");

int y_size = videoCtx->codec_ctx->width * videoCtx->codec_ctx->height;

videoCtx->packet = (AVPacket *) malloc(sizeof(AVPacket));

av_new_packet(videoCtx->packet, y_size);

while (av_read_frame(videoCtx->pFormatCtx, videoCtx->packet) >= 0) {

// Is this a packet from the video stream?

// LOGE("Is this a packet from the video stream :%d",videoCtx->packet->stream_index);

if (videoCtx->packet->stream_index == videoIndex) {

// Decode video frame

avcodec_decode_video2(videoCtx->codec_ctx, videoCtx->pFrame,

&frameFinished, videoCtx->packet);

// LOGE("Did we get a video frame");

// Did we get a video frame?

if (frameFinished) {

LOGE("解码一帧成功");

sws_scale(videoCtx->convert_ctx,

(uint8_t const * const *) videoCtx->pFrame->data,

videoCtx->pFrame->linesize, 0,

videoCtx->codec_ctx->height, videoCtx->pFrameYUV->data,

videoCtx->pFrameYUV->linesize);

//计算yuv一行数据占的字节数

SDL_UpdateTexture(videoCtx->bmp, &videoCtx->rect,

videoCtx->pFrameYUV->data[0],

videoCtx->pFrameYUV->linesize[0]);

SDL_RenderClear(videoCtx->renderer);

SDL_RenderCopy(videoCtx->renderer, videoCtx->bmp,

&videoCtx->rect, &videoCtx->rect);

SDL_RenderPresent(videoCtx->renderer);

}

SDL_Delay(50);

// Free the packet that was allocated by av_read_frame

av_free_packet(videoCtx->packet);

} else if (videoCtx->packet->stream_index == audioIndex) {

// LOGE("Did we get a audio frame");

decodeAudio(audioCtx, videoCtx->packet);

} else {

av_free_packet(videoCtx->packet);

}

SDL_PollEvent(&videoCtx->event);

switch (videoCtx->event.type) {

case SDL_QUIT:

quit = 1;

SDL_Quit();

exit(0);

break;

default:

break;

}

SDL_DestroyTexture(videoCtx->bmp);

// Free the YUV frame

av_free(videoCtx->pFrame);

av_free(videoCtx->pFrameYUV);

// Close the codec

avcodec_close(videoCtx->codec_ctx);

// Close the video file

avformat_close_input(&videoCtx->pFormatCtx);

free(videoCtx);

// SDL_Window *window;

// SDL_Renderer *renderer;

// if (SDL_CreateWindowAndRenderer(0, 0, 0, &window, &renderer) < 0)

// exit(2);

// Sprite sprite = LoadSprite("image.bmp", renderer);

// if (sprite.texture == NULL)

// exit(2);

/* Main render loop */

// Uint8 done = 0;

// SDL_Event event;

// while (!done) {

// /* Check for events */

// while (SDL_PollEvent(&event)) {

// if (event.type == SDL_QUIT || event.type == SDL_KEYDOWN

// || event.type == SDL_FINGERDOWN) {

// done = 1;

// }

// /* Draw a gray background */

// SDL_SetRenderDrawColor(renderer, 0xA0, 0xA0, 0xA0, 0xFF);

// SDL_RenderClear(renderer);

// draw(window, renderer, sprite);

// /* Update the screen! */

// SDL_RenderPresent(renderer);

// SDL_Delay(10);

// }

return 0;

}

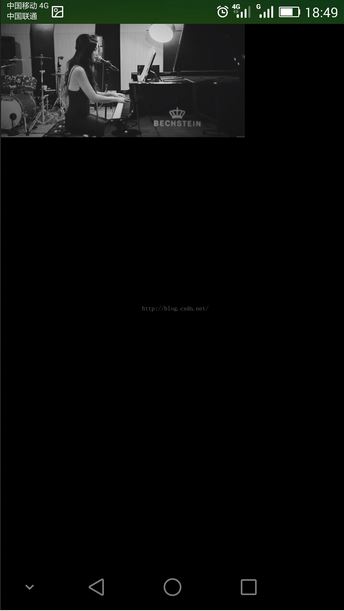

目前只解码了视频，音频尚有问题，Android.mk

LOCAL_PATH := $(call my-dir)

include $(CLEAR_VARS)

LOCAL_MODULE:= avcodec-prebuilt-armeabi

LOCAL_SRC_FILES:= ../ffmpeg/arm/lib/libavcodec-57.so
